PEÇAS - GX390 T2 QX

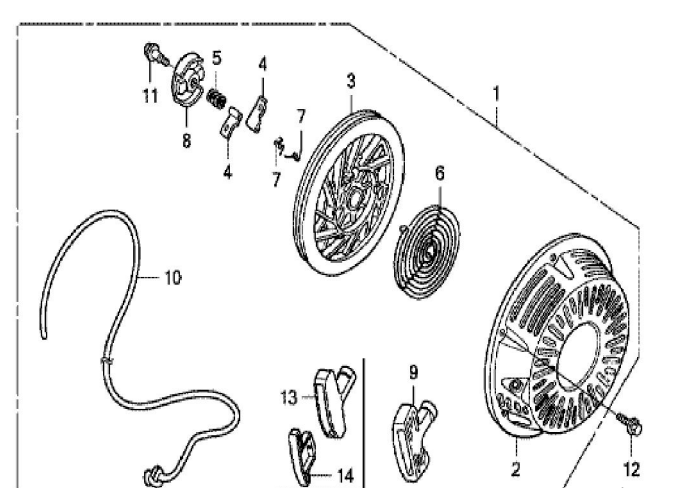

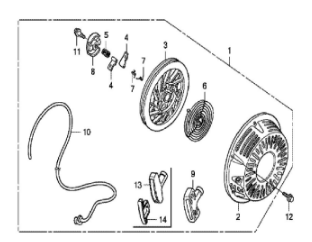

SISTEMA PARTIDA RETRÁTIL HONDA GX390 T2 QX

001 28400-Z5T-003ZA STARTER ASSY., RECOIL *R280* 1
002 28410-ZE3-W01ZP CASE COMP., RECOIL STARTER *R280 * 1
003 28421-ZE3-W01 PULLEY, RECOIL STARTER 1
004 28422-ZE2-W01 RATCHET, STARTER 2
005 28441-ZE2-W01 SPRING, FRICTION 1
006 28442-ZE2-W01 SPRING, STARTER RETURN 1
007 28443-ZE2-W01 SPRING, RATCHET 2
008 28444-ZE2-W01 RETAINER, SPRING 1
010 28462-ZE3-W01 ROPE, RECOIL STARTER 1
011 90004-ZE2-W01 SCREW, CENTER 1
012 90008-ZE2-003 BOLT, FLANGE, 6X10 3
013 28461-Z5T-003 GRIP, STARTER 1
014 28463-Z5T-003 GRIP, REINFORCEMENT 1

CARENAGEM, SISTEMA TAMPA DA VENTOINHA GX390 T2 QX

001 16731-ZE2-003 CLIP, TUBE 1

002 19610-Z5T-000ZA COVER COMP., FAN *R280* 1

003 19631-Z5T-000 SHROUD 1

007 90013-883-000 BOLT, FLANGE, 6X12 (CT200) 6

010 35120-Z5T-003 SWITCH ASSY., ENGINE STOP 1

011 90004-Z5T-000 SCREW, TAPPING, (PO) (3X6) 2

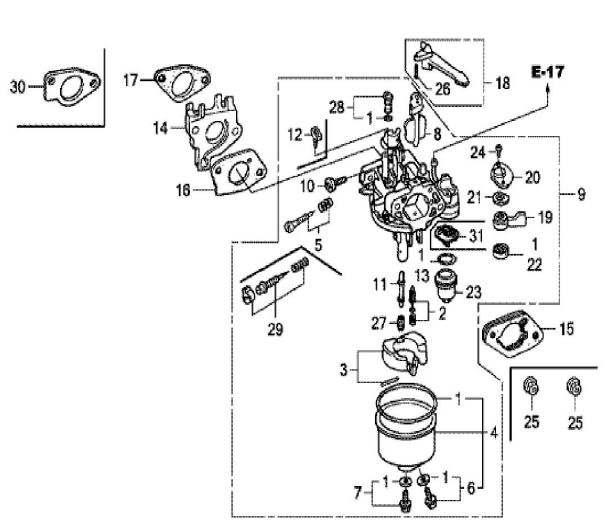

SISTEMA CARBURADOR GX390 T2 QX

001 16010-ZE2-812 GASKET SET 1
002 16011-ZA0-931 VALVE SET, FLOAT 1
003 16013-Z1C-003 FLOAT SET 1
004 16015-Z5T-901 CHAMBER SET, FLOAT 1
004 16015-ZE8-005 CHAMBER SET, FLOAT 1
005 16016-ZF6-005 SCREW SET, PILOT 1
006 16024-Z5T-901 SCREW SET, DRAIN 1
006 16024-ZE1-811 SCREW SET, DRAIN 1
007 16028-Z5T-901 SCREW SET 1
007 16028-ZE0-005 SCREW SET 1
008 16044-Z5T-901 CHOKE SET 1
008 16044-ZE3-W20 CHOKE SET 1
009 16100-Z1C-601 CARBURETOR ASSY. (BE85K A) 1

009 16100-Z1C-901 CARBURETOR ASSY. (BE88B A) 1
010 16124-ZE0-005 SCREW, THROTTLE STOP 1
011 16166-Z5T-901 NOZZLE, MAIN 1
011 16166-ZF6-V00 NOZZLE, MAIN 1
012 16172-ZE3-W10 COLLAR, SETTING 1
013 16173-001-004 PACKING, FUEL STRAINER CUP 1
014 16211-Z5T-000 INSULATOR, CARBURETOR 1
014 16211-ZF6-000 INSULATOR, CARBURETOR 1
015 16220-ZA0-702 SPACER COMP., CARBURETOR 1
016 16221-Z5T-000 PACKING, CARBURETOR 1
016 16221-ZF6-800 PACKING, CARBURETOR 1
017 16223-ZE3-W00 PACKING, INSULATOR 1
018 16610-ZE1-000 LEVER COMP., CHOKE (STD.) 1
019 16953-ZE1-812 LEVER, COCK 1
020 16954-ZE1-812 PLATE, LEVER SETTING 1
021 16956-ZE1-811 SPRING, COCK LEVER 1
022 16957-ZE1-812 PACKING, FUEL COCK 1
023 16967-ZE0-811 CUP, FUEL STRAINER 1
024 93500-030061H SCREW, PAN, 3X6 2
026 94305-20122 PIN, SPRING, 2X12 1
027 99101-ZH80880 JET, MAIN, #88 (1)
027 99101-ZH80900 JET, MAIN, #90 (1)
027 99101-ZH80920 JET, MAIN, #92 1
027 99101-ZH80980 JET, MAIN, #98 (1)
027 99101-ZH81020 JET, MAIN, #102 (1)
027 99101-ZH81050 JET, MAIN, #105 1
028 99204-ZA00450 JET SET, PILOT, #45 1
028 99204-ZE00380 JET SET, PILOT, #38 1
030 16212-Z5T-000 PACKING, CARBURETOR INSULATOR 1

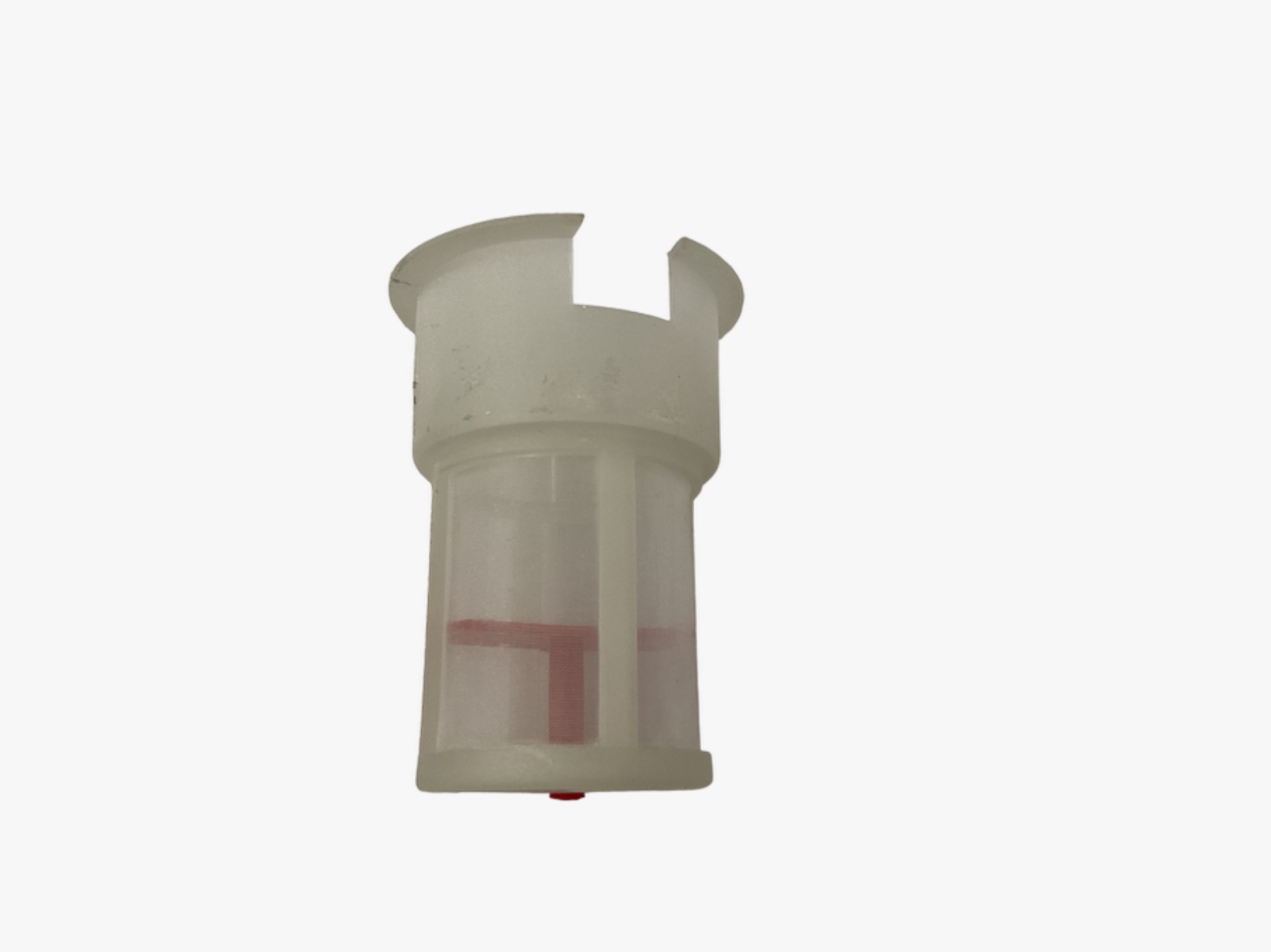

031 16959-Z5T-901 FILTER, CUP 1

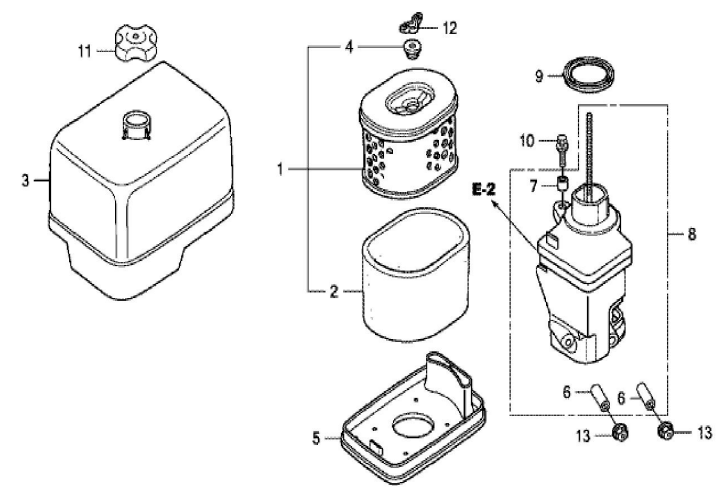

SISTEMA SUPORTE FILTRO DE AR GX390 T2 QX

001 17210-ZE3-010 ELEMENT, AIR CLEANER 1
002 17218-ZE3-000 FILTER, OUTER 1
003 17231-Z5T-000 COVER, AIR CLEANER CASE 1
004 17232-891-000 GROMMET, AIR CLEANER 1
005 17235-Z5T-000 NOSE, SILENCER 1
006 17238-ZE2-310 COLLAR, AIR CLEANER 2
007 17239-ZE1-000 COLLAR B, AIR CLEANER 1
008 17410-Z5T-000 ELBOW COMP., AIR CLEANER 1
009 17417-Z5T-000 PACKING, AIR CLEANER ELBOW 1
010 90009-Z1C-000 BOLT-WASHER, 6X22 1
011 90202-Z2E-000 NUT, AIR CLEANER COVER 1
012 90325-044-000 NUT, TOOL BOX SETTING 1
013 94050-06000 NUT, FLANGE, 6MM 2

SISTEMA DO ESCAPE - GX390 T2 QX HONDA

002 18310-Z5T-000 MUFFLER COMP. 1
003 18320-Z5T-000 PROTECTOR COMP., MUFFLER 1
004 18331-Z5T-000 PIPE, EX. 1
005 18333-ZF6-W01 GASKET, EX. PIPE 1
006 18336-ZE3-000 FLANGE COMP., BAFFLE 1
009 18381-Z1C-801 GASKET, MUFFLER (THAI LEAKLESS) 1
009 18381-ZE2-801 GASKET, MUFFLER (NIPPON LEAKLESS) 1
010 90006-ZE2-000 SCREW, TAPPING, 6X10 1
012 90050-ZE1-000 SCREW, TAPPING, 5X8 6
013 94050-08000 NUT, FLANGE, 8MM 5

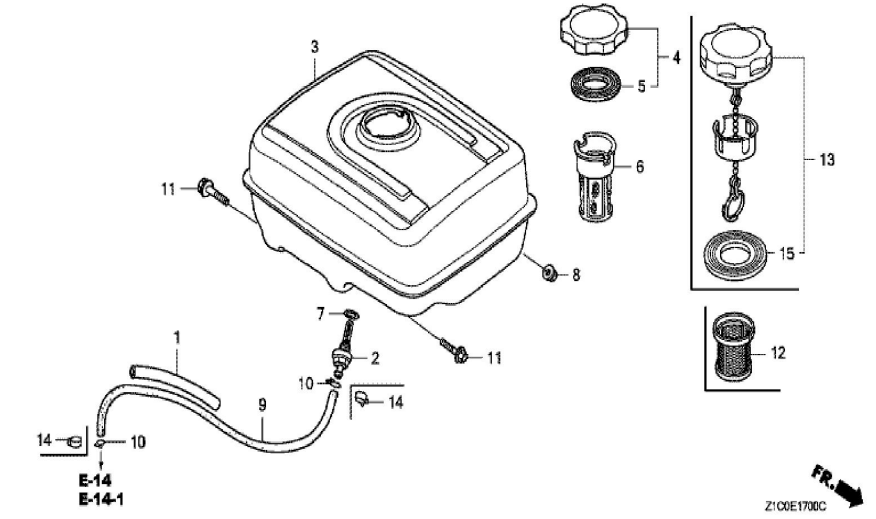

SISTEMA TANQUE DE COMBUSTÍVEL HONDA GX390 T2 QX

001 16854-ZH8-000 RUBBER, SUPPORTER (107MM) 1

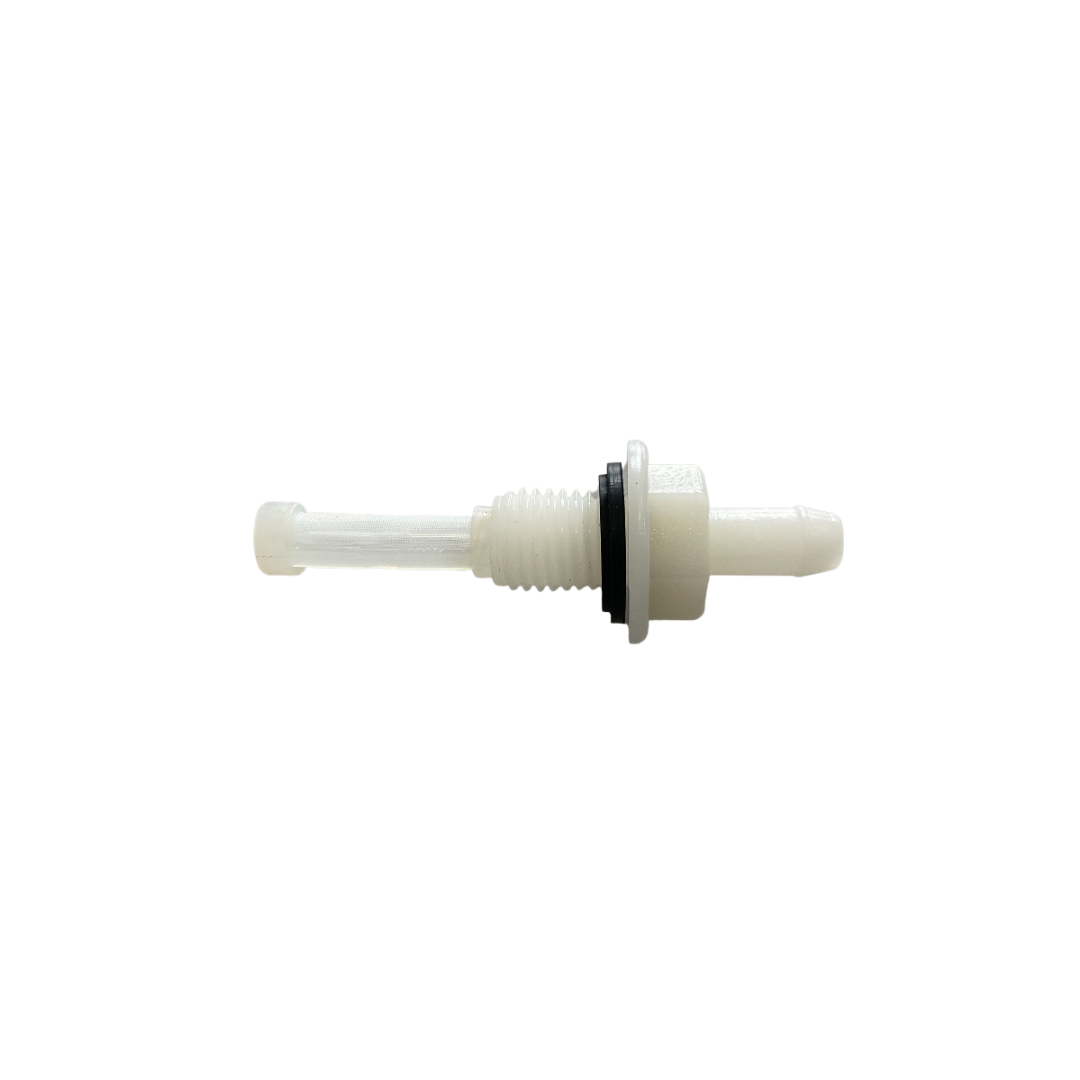

002 16955-ZE1-010 JOINT, FUEL TANK 1
003 17510-Z5T-000ZB TANK COMP., FUEL *NH31* 1
004 17620-Z0T-813 CAP COMP., FUEL FILLER (CHROME PLATED) ( 1
004 17620-Z1T-800 CAP COMP., FUEL FILLER (CHROME PLATED) ( 1
005 17631-Z0T-801 PACKING, FUEL FILLER CAP (39X62X3) (RADI 1
005 17631-Z1T-800 PACKING, FUEL FILLER CAP (39X62X3) (TOUY 1
007 91353-671-004 O-RING, 14MM (NOK) 1
008 94050-08000 NUT, FLANGE, 8MM 2
009 95001-4523540 TUBE, FUEL, 4.5X235 (95001-45001-60M) 1
010 95002-02080 CLIP, TUBE (B8) 2
011 95701-0802500 BOLT, FLANGE, 8X25 2

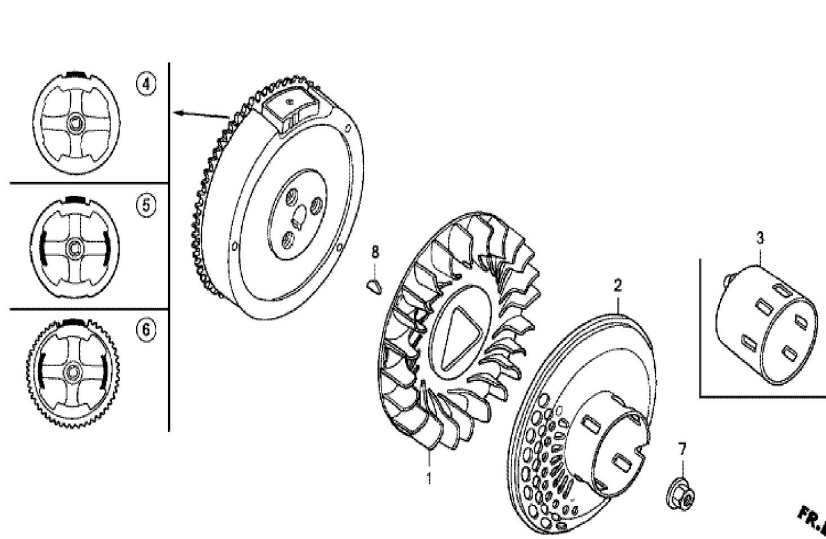

SISTEMA VOLANTE DE IGNIÇÃO GX390 T2 QX

001 19511-ZE3-000 FAN, COOLING 1
002 28450-ZE3-W11 PULLEY COMP., STARTER (SCREEN GRID) 1
004 31110-Z5T-000 FLYWHEEL COMP. 1
007 90201-ZE3-790 NUT, SPECIAL, 16MM 1
008 90741-ZE2-000 KEY, SPECIAL WOODRUFF, 25X18 1

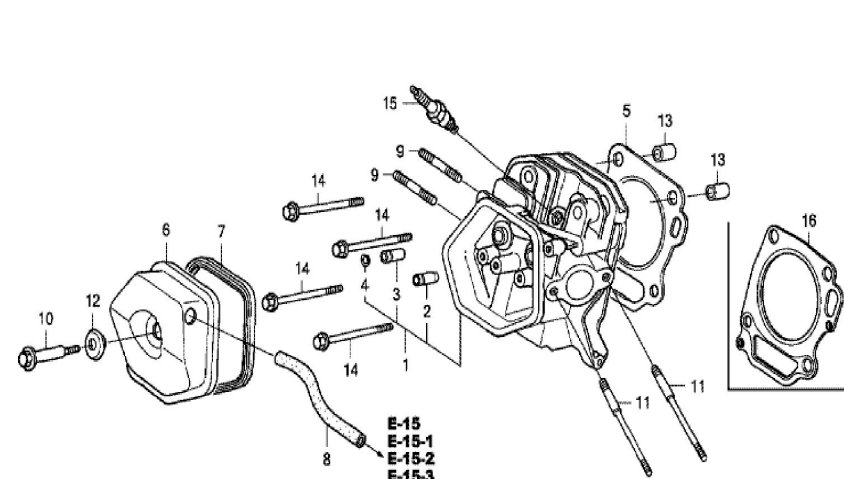

SISTEMA CABEÇOTE GX390 T2 QX

001 12200-Z1C-406 HEAD COMP., CYLINDER 1
001 12210-Z5T-406 HEAD COMP., CYLINDER 1
002 12204-ZE2-306 GUIDE, IN. VALVE (O.S.) 1
003 12205-ZE2-305 GUIDE, EX. VALVE (O.S.) 1
004 12216-ZE2-300 CLIP, VALVE GUIDE 1
005 12251-Z1C-801 GASKET, CYLINDER HEAD (THAI LEAKLESS) 1 1337117
005 12251-Z5T-003 GASKET, CYLINDER HEAD (NIPPON LEAKLESS) 1
006 12310-Z5T-000 COVER, CYLINDER HEAD 1
006 12310-ZE2-020 COVER COMP., HEAD 1
007 12391-ZE2-020 PACKING, HEAD COVER 1
008 12357-Z5T-000 TUBE, BREATHER 1
008 95005-1110530 TUBE, 11X105 (95005-11001-30M) 1
009 92900-080320E BOLT, STUD, 8X32 2

010 90014-Z5T-000 BOLT, HEAD COVER 1
011 90042-ZE8-000 BOLT, STUD, 8X131.5 2
012 90441-ZE2-010 WASHER COMP., HEAD COVER 1
013 94301-12200 DOWEL PIN, 12X20 2
014 95701-1008000 BOLT, FLANGE, 10X80 4
015 98079-55876 PLUG, SPARK (BPR5ES) (1)
015 98079-56876 PLUG, SPARK (BPR6ES) 1

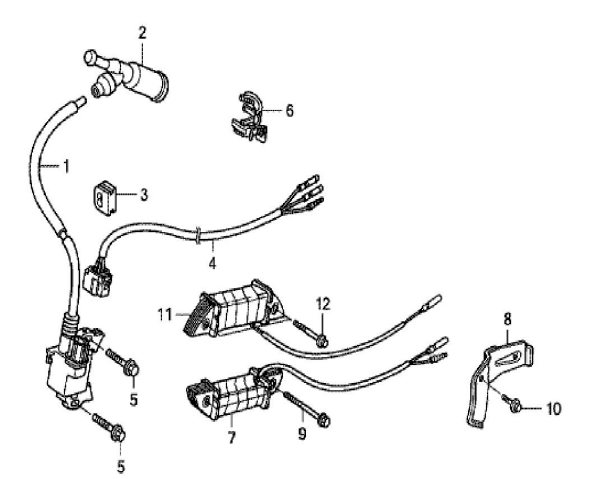

SISTEMA IGNIÇÃO GX390 QX

001 30500-Z5T-003 COIL ASSY., IGNITION 1
002 30700-Z1C-811 CAP ASSY., NOISE SUPPRESSOR (NGK Y-EZD) 1
003 31512-ZE2-000 GROMMET, CORD 1
004 32110-Z5T-000 HARNESS ASSY., ENGINE WIRE 1
005 90015-883-000 BOLT, FLANGE, 6X28 2
006 90684-ZA0-601 CLIP, HARNESS 1

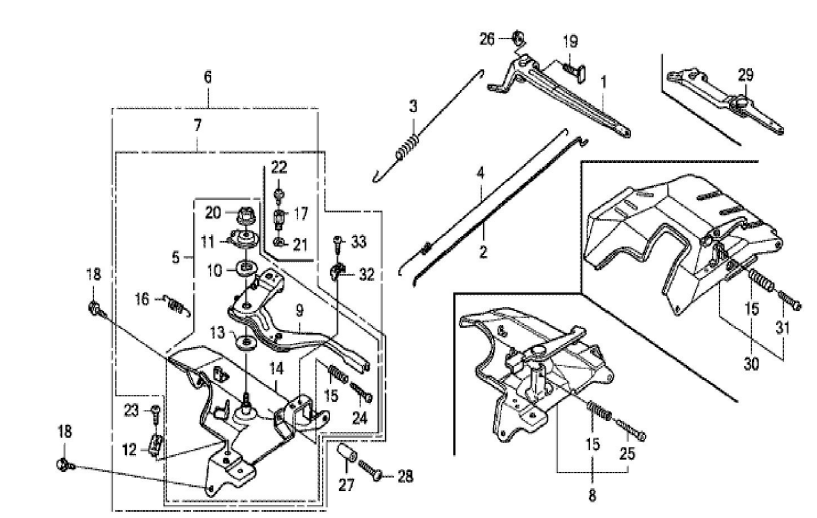

SISTEMA DE COMANDO DE ACELERAÇÃO GX390 T2 QX

001 16551-ZE3-000 ARM, GOVERNOR 1
002 16555-ZE3-000 ROD, GOVERNOR 1
003 16561-ZE3-000 SPRING, GOVERNOR (L=137.5MM) 1
004 16562-ZE3-000 SPRING, THROTTLE RETURN 1
007 16500-Z5T-810 CONTROL ASSY. (REMOTE) (ROD) 1
007 16570-ZE3-W20 CONTROL ASSY. (REMOTE) 1
009 16571-ZE3-W00 LEVER, CONTROL 1
010 16574-ZE1-000 SPRING, LEVER 1
011 16575-ZE2-W00 WASHER, CONTROL LEVER 1
013 16578-ZE1-000 SPACER, CONTROL LEVER 1
014 16580-Z5T-000 BASE COMP., CONTROL 1
014 16581-ZE3-W00 BASE COMP., CONTROL (###) 1
015 16584-883-300 SPRING, CONTROL ADJUSTING 1

016 16592-883-310 SPRING, CABLE RETURN 1
018 90013-883-000 BOLT, FLANGE, 6X12 (CT200) 2
019 90015-Z5T-000 BOLT, GOVERNOR ARM 1
020 90114-SA0-000 NUT, SELF-LOCK, 6MM 1
024 93500-050320A SCREW, PAN, 5X32 1
026 94050-06000 NUT, FLANGE, 6MM 1
032 16576-891-000 HOLDER, CABLE 1
033 93500-050160A SCREW, PAN, 5X16 1

SISTEMA CILINDRO GX390 T2 QX

001 12000-Z5T-407 BARREL ASSY., CYLINDER (ALERT) 1
003 16541-ZE3-010 SHAFT, GOVERNOR ARM 1
006 90131-883-000 BOLT, DRAIN PLUG, 12X15 2
007 90446-KE1-000 WASHER, 8.2X17X0.8 1
008 91201-Z1C-003 OIL SEAL, 35X52X8 1
009 91203-952-771 OIL SEAL, 8X14X5 1
010 91353-671-004 O-RING, 14MM (NOK) 1
011 94050-10000 NUT, FLANGE, 10MM 1
012 94109-12000 WASHER, DRAIN PLUG, 12MM 2
013 94251-10000 PIN, LOCK, 10MM 1
014 95701-0601200 BOLT, FLANGE, 6X12 2
015 96100-6202000 BEARING, RADIAL BALL, 6202 1
016 35480-ZF6-003 SWITCH ASSY., OIL LEVEL 1

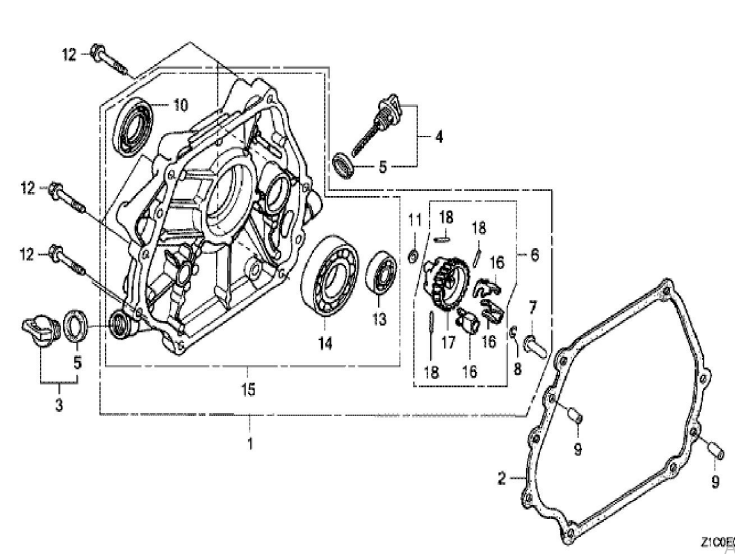

SISTEMA TAMPA DO CILINDRO GX390 T2 QX

001 11300-Z1C-600 COVER ASSY., CRANKCASE 1
002 11381-Z5T-000 PACKING, CASE COVER 1
002 11381-ZE3-801 PACKING, CASE COVER 1
003 15600-Z0T-820 CAP ASSY., OIL FILLER 1
004 15600-Z1C-000 CAP ASSY., OIL FILLER 1
005 15625-Z0T-800 PACKING, OIL FILLER CAP 2
006 16510-ZE3-000 GOVERNOR ASSY. 1
007 16531-Z0A-000 SLIDER, GOVERNOR 1
008 90602-ZE1-000 CLIP, GOVERNOR HOLDER 1
009 90701-HC4-000 DOWEL PIN, 8X12 2
010 91201-Z1C-003 OIL SEAL, 35X52X8 1
011 94101-06800 WASHER, PLAIN, 6MM 1
012 95701-0804000 BOLT, FLANGE, 8X40 7

013 96100-6202000 BEARING, RADIAL BALL, 6202 1
014 96100-6207000 BEARING, RADIAL BALL, 6207 1
016 16511-ZE8-000 WEIGHT, GOVERNOR 3
017 16512-ZE3-000 HOLDER, GOVERNOR WEIGHT 1
018 16513-ZE2-000 PIN, GOVERNOR WEIGHT 3

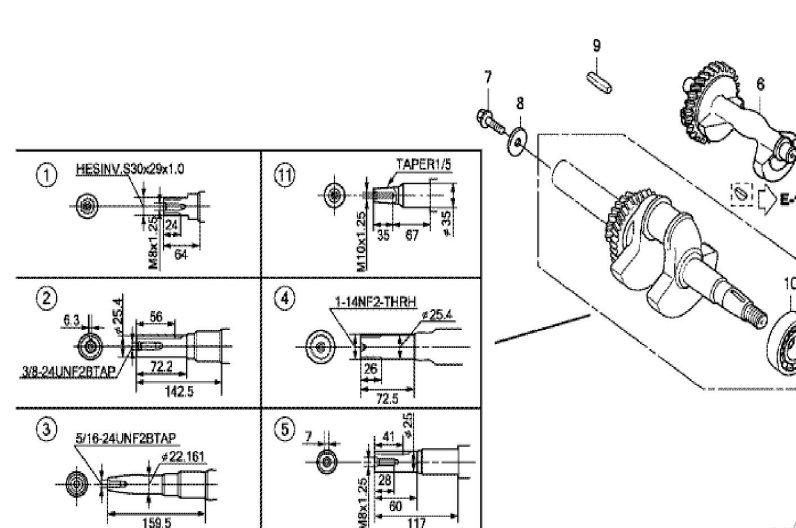

SISTEM EIXO VIRABREQUIM HONDA GX390 T2 QX

002 13310-ZF6-W12 CRANKSHAFT COMP. 1
006 13351-ZE3-010 WEIGHT, BALANCER 1
009 90745-ZE2-600 KEY, 6.3X6.3X43 1
010 91001-ZF6-013 BEARING, RADIAL BALL, 6207SH 1 1284385

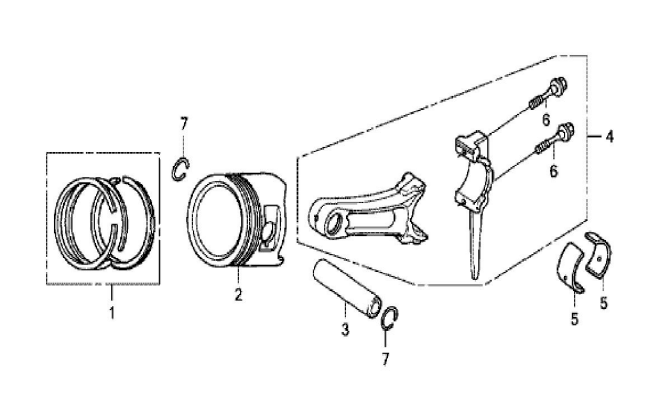

SISTEMA PISTÃO E ANÉIS GX390 T2 QX

001 13010-Z5R-004 RING SET, PISTON (STD.) (TEIKOKU) 1
001 13010-Z5T-003 RING SET, PISTON (STD.) (RIKEN) 1
001 13011-Z5R-004 RING SET, PISTON (0.25) (TEIKOKU) (1) 1450801
001 13011-Z5T-003 RING SET, PISTON (0.25) (RIKEN) (1) 1450801
001 13012-Z5R-004 RING SET, PISTON (0.50) (TEIKOKU) (1)
001 13012-Z5T-003 RING SET, PISTON (0.50) (RIKEN) (1) 1450801
001 13013-Z5R-004 RING SET, PISTON (0.75) (TEIKOKU) (1) 1450801
001 13013-Z5T-003 RING SET, PISTON (0.75) (RIKEN) (1)
002 13101-Z5T-000 PISTON (STD.) 1 1438370
002 13101-Z5T-800 PISTON (STD.) 1
002 13102-Z5T-000 PISTON (0.25) (1) 1438370
002 13102-Z5T-800 PISTON (0.25) (1)
002 13103-Z5T-000 PISTON (0.50) (1) 1438370

002 13103-Z5T-800 PISTON (0.50) (1)
002 13104-Z5T-000 PISTON (0.75) (1) 1438370
002 13104-Z5T-800 PISTON (0.75) (1)
003 13111-Z5T-000 PIN, PISTON 1
003 13111-ZF6-W00 PIN, PISTON 1
004 13200-Z1C-000 ROD ASSY., CONNECTING (STD.) 1
004 13200-Z1C-305 ROD ASSY., CONNECTING (0.25 UNDER SIZE) (1)
006 90001-ZE8-000 BOLT, CONNECTING ROD 2
007 90601-ZE3-000 CLIP, PISTON PIN, 20MM 2

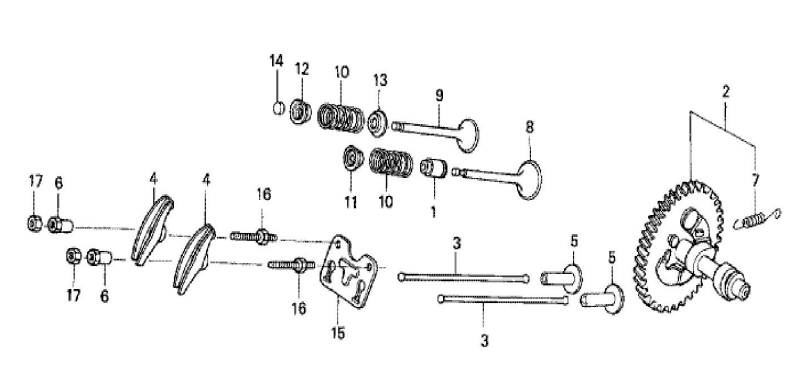

SISTEMA EIXO DO GOVERNADOR HONDA GX390 T2 QX

001 12209-ZE8-003 SEAL, VALVE STEM 1
002 14100-Z5T-810 CAMSHAFT ASSY. 1
002 14100-ZF6-W01 CAMSHAFT ASSY. 1
003 14410-Z1C-000 ROD, PUSH 2
004 14431-ZE2-010 ARM, VALVE ROCKER 2
005 14441-ZE2-000 LIFTER, VALVE 2
006 14451-ZE1-013 PIVOT, ROCKER ARM 2
007 14568-ZE1-000 SPRING, WEIGHT RETURN 1
008 14711-Z5T-000 VALVE, IN. 1
008 14711-ZE3-000 VALVE, IN. 1
009 14721-Z5T-000 VALVE, EX. 1
009 14721-ZE3-000 VALVE, EX. 1
010 14751-Z1C-000 SPRING, VALVE 2

011 14771-Z8S-000 RETAINER, IN. VALVE SPRING 1
012 14771-Z8S-000 RETAINER, IN. VALVE SPRING 1
013 14775-ZE2-010 SEAT, VALVE SPRING 1
014 14781-ZE2-000 ROTATOR, VALVE 1
015 14791-Z1D-000 GUIDE, PUSH ROD 1
016 90012-ZE0-010 BOLT, PIVOT, 8MM 2
017 90206-ZE1-000 NUT, PIVOT ADJUSTING 2
